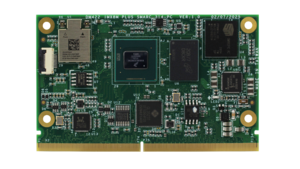

NX8MP-SMARC

NX8MP-SMARC

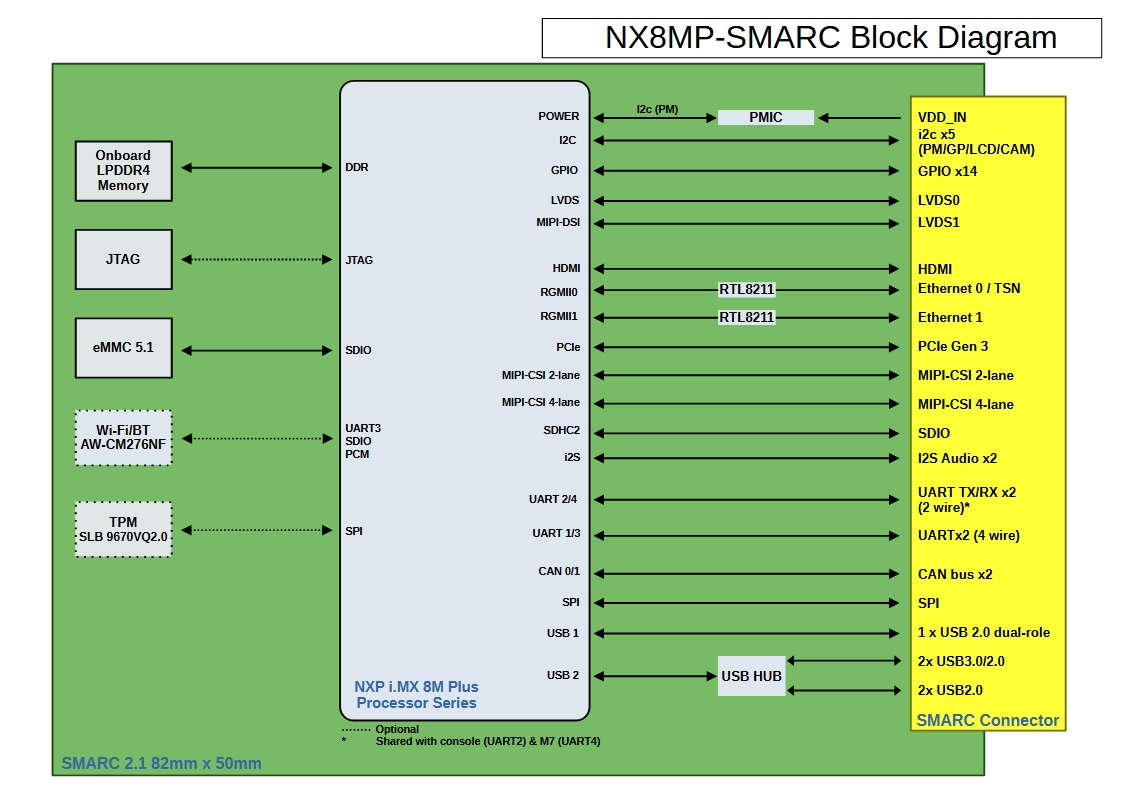

Features NXP i.MX8M Plus Quad, 4 x Cortex-A53 1.6GHz Display: HDMI / Dual-Channel LVDS I/O:4xUART/5xUSB/2xGLAN/5xI2C/SPI/PCIe/14-bit GPIO/I2S/MIPI-CSIx2 Optional interface: WiFi/BT / TPM RAM: 4/8 GB LPDDR4 Standard SMARC 2.1 System on Module Working temp.: -20° to 70° C or -40° to 85° C (Optional) Join the professional technical forum about NXP i.MX 8M series Block diagram Datasheet ODM/OEM project

Specifications

CPU	NXP i.MX8M Plus Quad, 4 x Cortex-A53 1.6GHz
Memory	4/8 GB LPDDR4
GPU	GC7000UL for 3D engine / GC520L for 2D engine
Display	HDMI: up to 3840 x 2160p30 LVDS: Dual-LVDS 24-bit maximum resolution up to 1920 x 1200 @ 60Hz
Storage	On board eMMC 16~128GB (MLC) SDIO
Network	Ethernet: 10/100/1000 Mbps x2
RTC	PCF8563TS/5
I2C	×5
SPI	×1
UARTs	×4
USB	5xUSB (Incl. USB3.0x2 / 2.0x2 / 2.0OTGx1)
BUS	PCIe
Audio	I2S
Temperature Range	-20° to 70° C or -40° to 85° C (Optional)
Dimensions	82.00mm × 50.00mm

Yocto

Android
